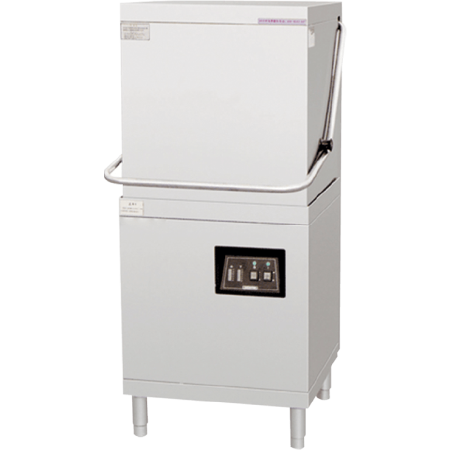

Technical Parameters

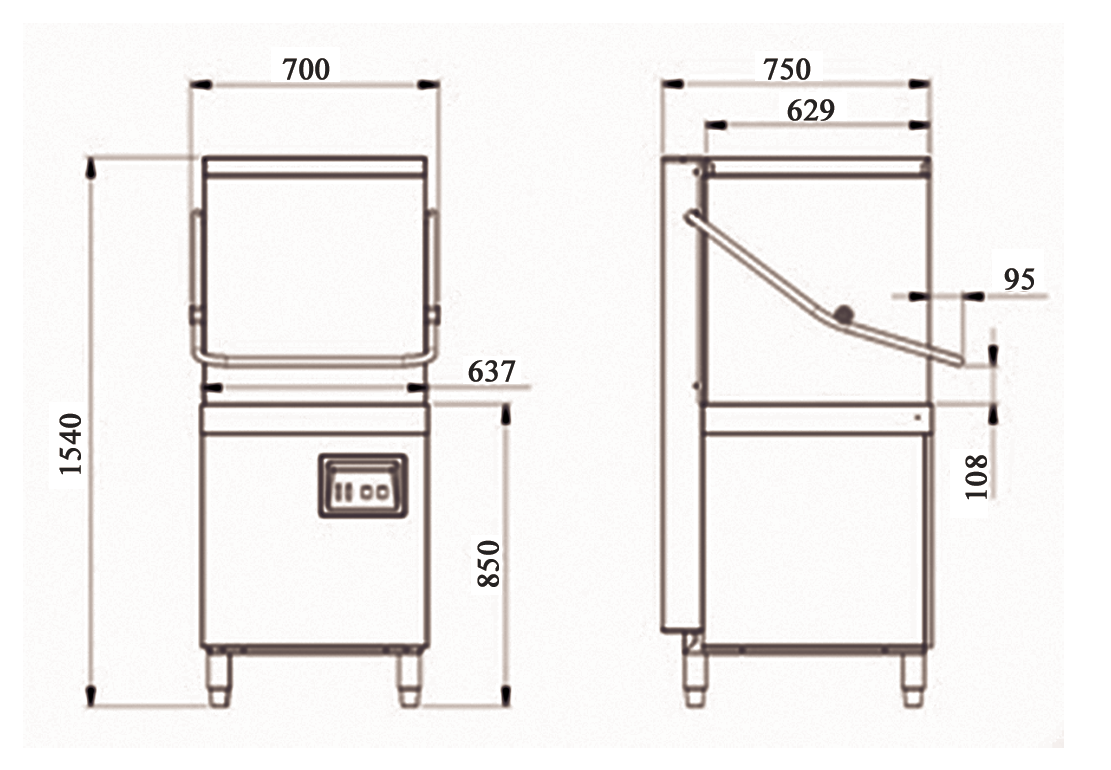

Dimensions (mm): 700*750*1540
Washing capacity (baskets / hour): 60 OR 40
Wash cycle (s): 60 OR 90
Cutlery basket size (mm): 500*500
The maximum washing height (mm): 420
Operator Panel Mode: mechanical
Power consumption (kw): 15.8
Cleaning pump power (kw): 0.75
Heating power washing (kwW): 3
Spray heating power (kW): 12
Water consumption (liters / basket): 2.5
Water tank capacity (L): 26
Installation Requires Connection
1. Power:380v/5OHz/ 3p (three-phase five-wire),
cable ≥6mm2
2. Inlet diameter: 6 (ft); Drain diameter:32mm
3. Water pressure: 0.5 ~ 6bar
4. Water temperature: 10 ℃ ~65 C
5. Water Hardiness: 0.034~0.103g/ L.
